Ground Support Equipment
The FLM136 ground support equipment includes a hand controller, fueler, and battery charger.
Note: The aircraft may be delivered in various configurations that may omit or include additional equipment.

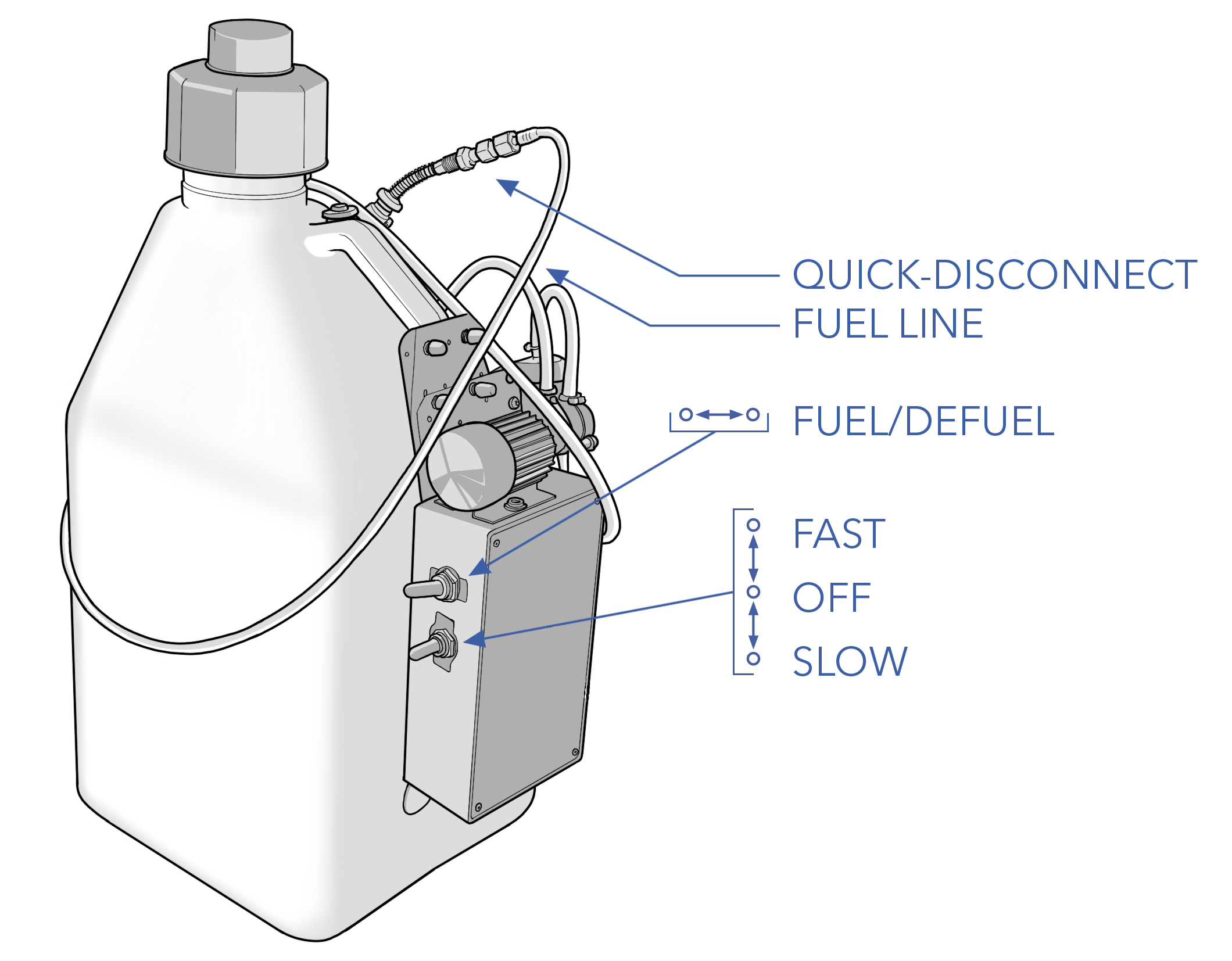

Fueler
The fueler is used to fuel and defuel the aircraft. Powering the fueler's electric pump is either a battery or auxiliary power supply. A battery-powered scale is used to meter gasoline during fueling and defueling operations. See the Fueling section for detailed fueling and mixing instructions.
Fueler Specs
| Parameter | Specification |
|---|---|
| Capacity | 5 gal / 18.9 L |
| Fuel | 91-95 octane, C10 |
Gasoline is an extremely flammable liquid and vapor. Causes skin irritation. May cause drowsiness or dizziness. Store in approved containers.
Battery Charger
The dual-channel lithium-polymer battery charger is used for the avionics and fueler batteries and also supports custom battery profiles. See the Battery Management section for detailed charging instructions.
Battery Charger Specs
| Parameter | Specification |
|---|---|
| Charger | ISDT X16 |
| Channels | 2 |
| Input Voltage | 100 - 240VAC |
| Supported Batteries | 2-16S LiFe, LiPo |
| Charge Current | 1 - 20A x2 |
| Max Charge Power | 800W x2 (110VAC), 1100W x2 (220VAC) |
| Discharge Power | 50W x2 |
| Rated Ambient | 32 - 104°F / 0 - 40°C |
| Transport Case | SKB iSeries 2015-7 |
